Flexible Positioning Armboard

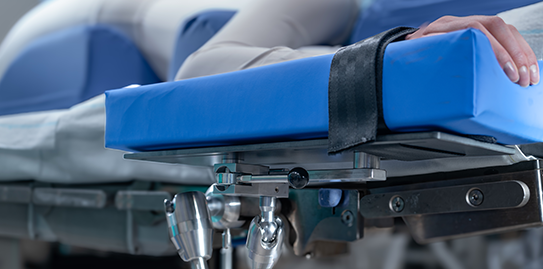

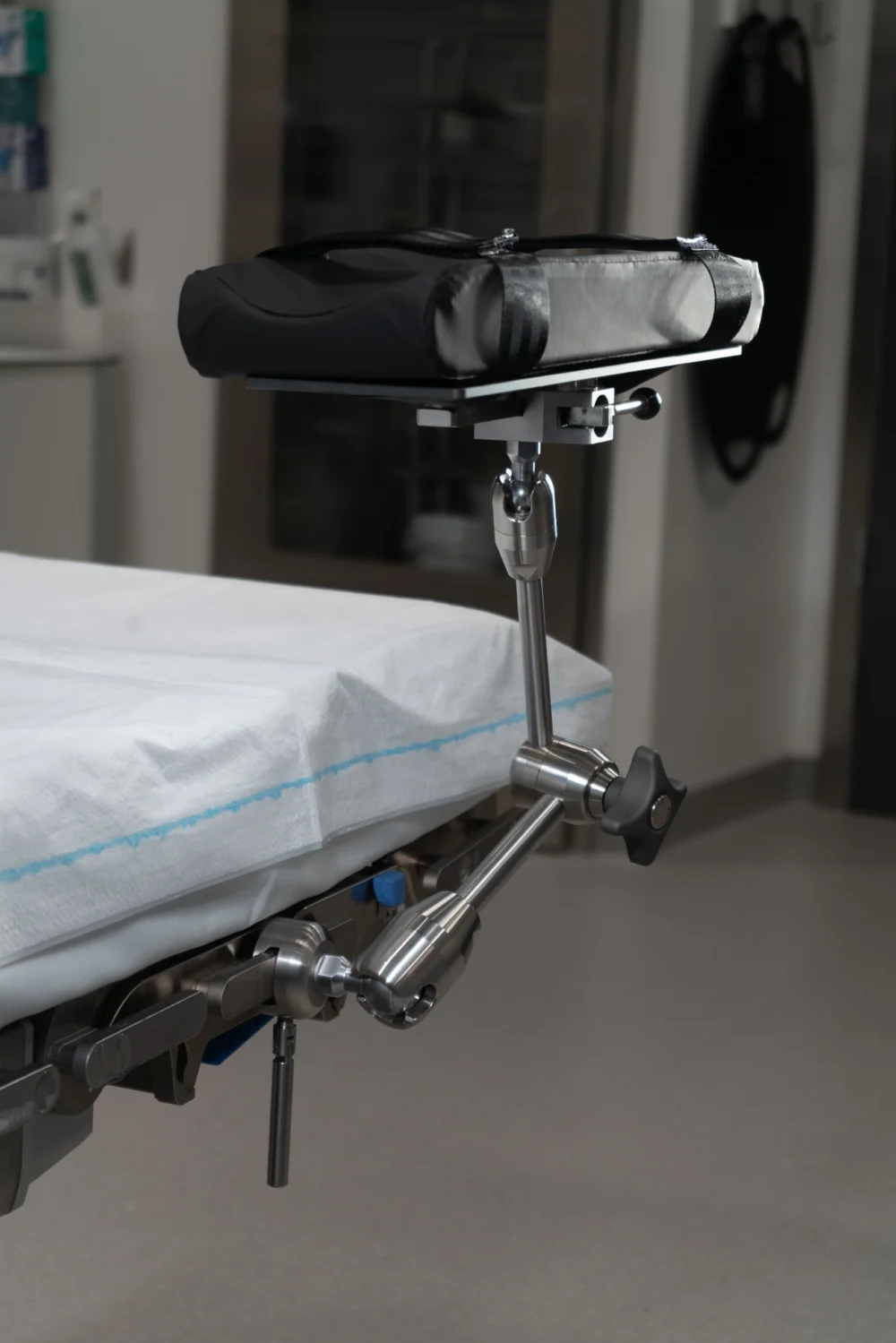

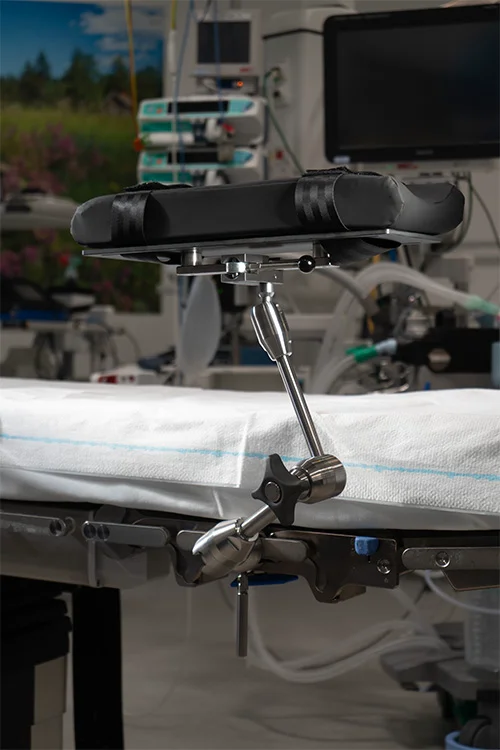

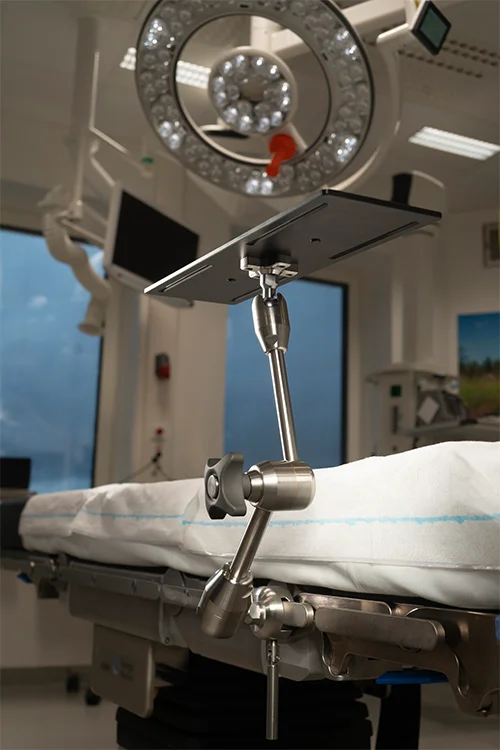

Our Flexible Positioning Armboard – a flexible and stable solution for arm positioning during surgical procedures. The product is designed for both prone positioning and procedures where the arm needs to be supported in an elevated position, with a strong focus on precision and ease of use.

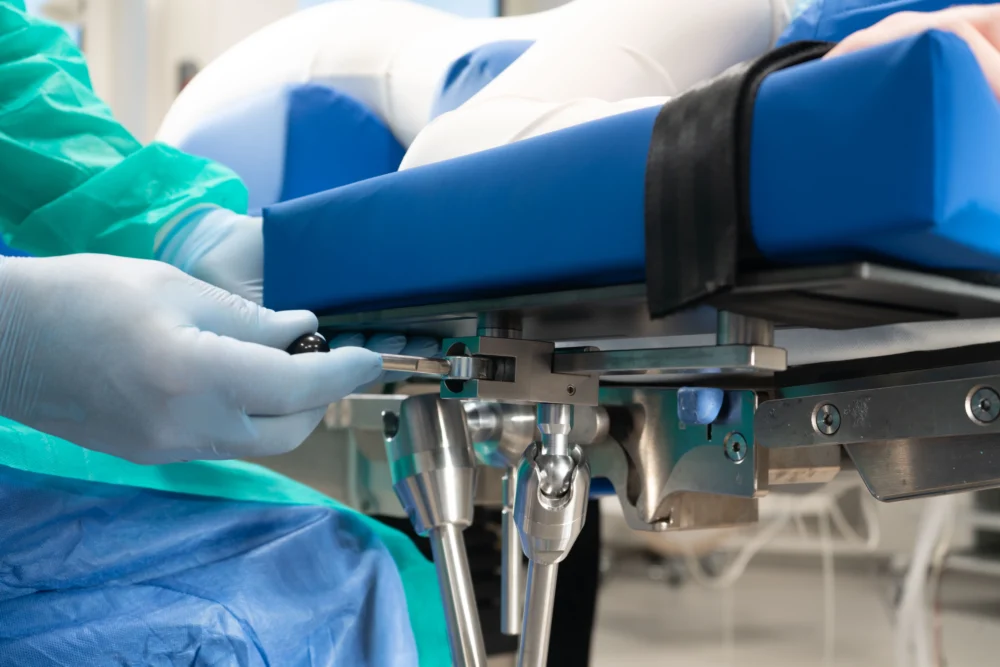

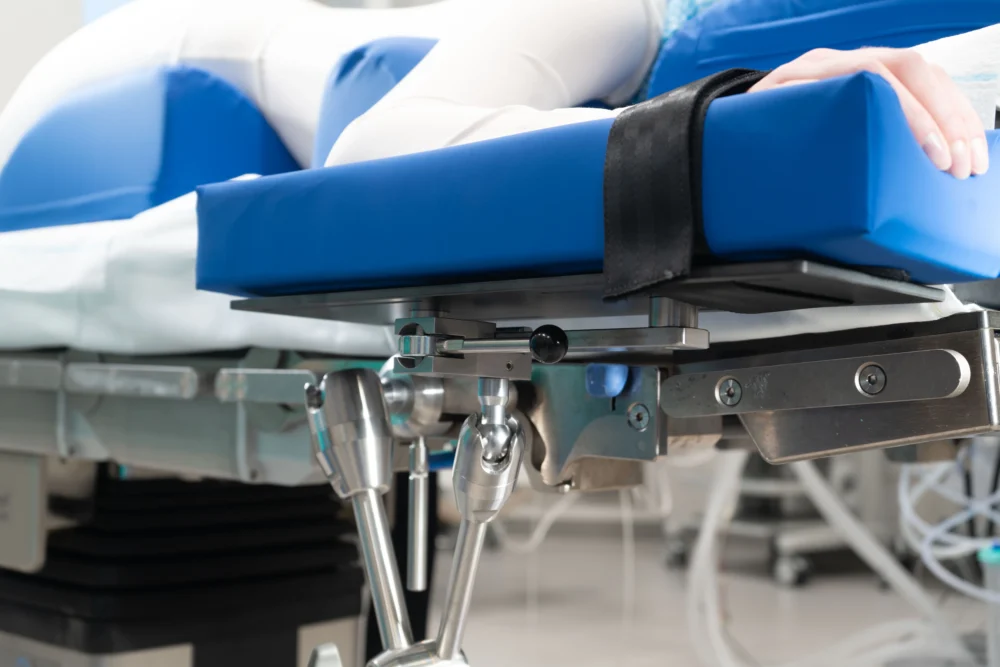

The smart double-joint design allows for quick and precise adjustment, and for even greater control, a model with a horizontally adjustable plate is also available.
Positioning Arm Table, standard: 20-300

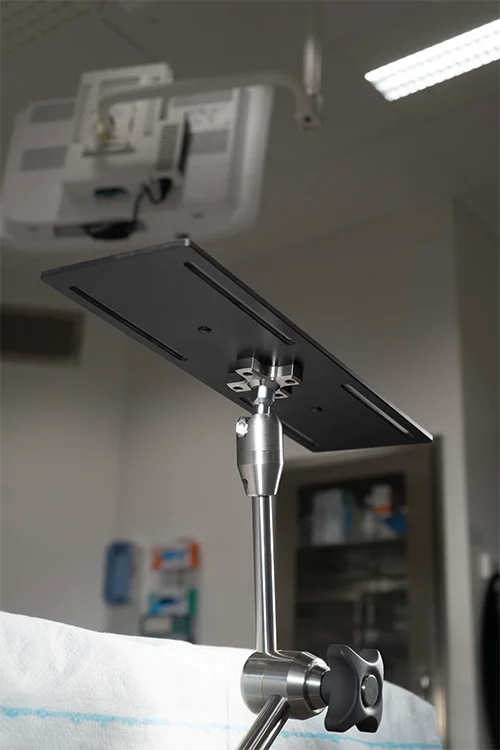

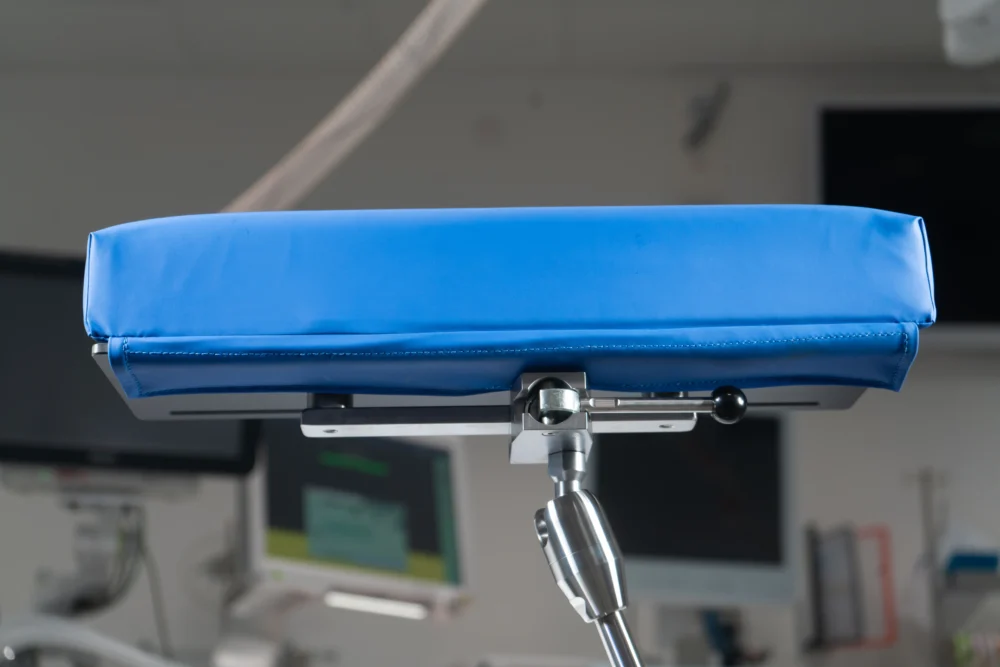

Positioning Arm Table, horizontally adjustable plate: 20-300-10
Part no: 20-300, 20-300-10
Leveransinformation
- Specifications
- Accessories
- Documents
- Videos
Specifications
| Part Number EU | 20-300, 20-300-10 |
| Length | 410 mm |
| Width | 130-470 mm, 150-500 mm |
| Height | 160 mm |
| Weight | 4,1 kg, 5,3 kg |
| SWL | 12 kg |
| Material | Stainless steel, Aluminum, Plastic, Bakelite |
Accessories
Clamp included:
A universial clamp is included in the product.
Clamp for EU rail are available:
EU accessory rail (25×10 mm)
Recommended Cushions:
11551, Black antistatic armboard pad, PU
800.121-B, Blue armboard pad with wings, PU
800.121-E-1088, Blue armboard pad, PU
Recommended Straps (not included):
10-383 Strap for Armboard
10-383-L Strap for Armboard, long
Material: Polyester
