Flexible Head support

This flexible and multi-adjustable head support is designed specifically for ENT-plastic, and eye surgeries.

The head support has a bowl-shaped cavity that keeps the head of the patient in a steady position throughout the treatment. It offers a wide adjustment range, from 110° below horizontal to 50° above horizontal, allowing for precise positioning.

A unique locking system secures both pivots with a single lever, ensuring stability and ease of use.  The holder is compatible with a wide range of operating tables and, with the use of adapters, can fit nearly all models on the market.

• Standard fittings: Two pins diam. 15 mm C-C 106 mm.
• Other fittings: (Mayfield 171.5 mm C-C), Maquet etc. Available on request.

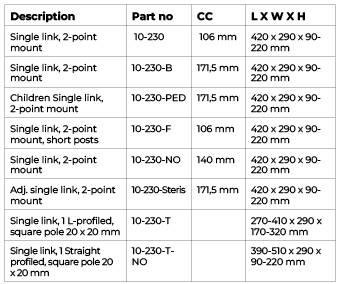

Versions:

10-230           Flexible Head Support, single link, 2-point mount CC 106 mm
10-230-B       Flexible Head Support, single link, 2-point mount CC 171,5 mm
10-230-PED  Flexible Head Support, single link, 2-point mount CC 171,5 mm, Children
10-230-F       Flexible Head Support, single link, 2-point mount CC 106 mm, short posts
10-230-NO    Flexible Head Support, single link, 2-point mount CC 140 mm
10-230-Steris   Flexible Head Support, adj. single link, 2-point mount CC 171,5 mm
10-230-T           Flexible Head Support, single link, 1 L-profiled, square pole 20 x 20 mm
10-230-T-NO   Flexible Head Support, single link, 1 Straight profiled, square pole 20 x 20 mm
